Discover how TPE molded bottle cap liner materials provide reliable sealing, flexibility and processing efficiency. Learn about material selection, compression set, testing and common sealing problems.

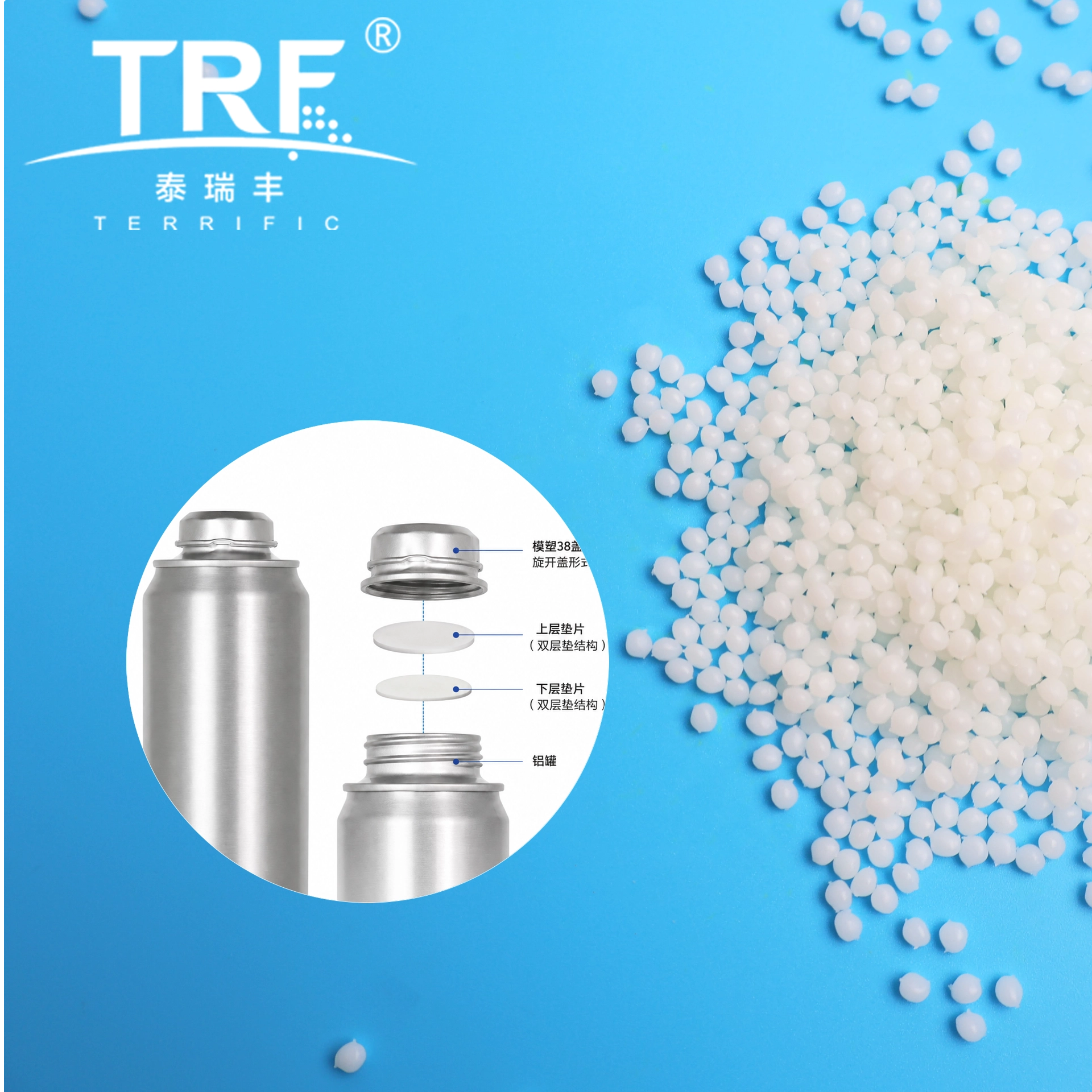

A TPE molded bottle cap liner is a thermoplastic elastomer component used between a bottle and its closure to improve sealing performance. Compared with conventional thermoset rubber, TPE can be processed using thermoplastic technologies such as injection molding and can be customized for different hardness, sealing and processing requirements.
In packaging applications, TPE cap liners need to provide sufficient deformation and elastic recovery after the cap is tightened. Avient describes TPE cap liners as capable of providing sealing performance while supporting low-torque opening characteristics.
For pharmaceutical packaging, USP recognizes that elastomeric packaging components may be either thermoset or thermoplastic and must be suitable for their intended use.
Compression set is one of the most important indicators for a sealing material. ASTM D395-based compression-set testing commonly evaluates deformation after the material is compressed by 25% under specified temperature and time conditions. Typical test durations can include 22, 70, 168 and 1,000 hours, with temperatures such as 23°C, 70°C, 121°C and 150°C, depending on the test program.
A lower compression set generally indicates better recovery, but the acceptable value must be determined according to the actual closure design and application.
There is no universal hardness for bottle cap liners. A practical development range may include approximately 40–80 Shore A, but the final specification should be determined by:
Bottle-neck geometry
Liner thickness
Cap torque
Compression ratio
Required sealing pressure
Temperature conditions
Hardness should never be selected independently from the closure design.
The liner may contact water, oils, acidic formulations, alcohol-containing products or pharmaceutical formulations. Material compatibility testing should therefore be performed using the actual product formulation and intended contact conditions.
For pharmaceutical packaging, USP highlights protection, compatibility, safety and performance as important considerations.
A practical development workflow is:
TPE Granules → Injection/Compression Molding → Dimensional Inspection → Cap Assembly → Leak Testing → Aging → Final Validation
During material development, manufacturers should evaluate:
For pharmaceutical applications, USP <382> emphasizes that elastomeric closure functionality should be evaluated as part of the intended packaging system, rather than testing the elastomeric component in isolation.
Parameter | Typical Evaluation |
|---|---|
Hardness | Shore A |
Compression set | ASTM D395-based testing |
Tensile strength | MPa |
Elongation | % |
Tear strength | kN/m |
Thermal aging | Application dependent |
Chemical resistance | Actual product |
Seal integrity | Finished bottle/closure |
Possible causes include excessive compression set, insufficient sealing pressure, dimensional variation or inappropriate cap torque.
Solution: evaluate the complete bottle-cap-liner system and conduct aging and leak tests under realistic conditions.
A liner that creates excessive friction can make the cap difficult to open.
Solution: optimize material hardness, surface characteristics, liner geometry and compression.
Packaging materials can potentially contribute extractables or leachables to the packaged product. USP specifically identifies these risks for elastomeric components used in pharmaceutical packaging. 美洲病理学会
Solution: conduct application-specific extractables/leachables and compatibility assessments when required.
Yes, in suitable applications. However, the specific TPE formulation must be validated for sealing, compression set, chemical compatibility, temperature and regulatory requirements.
There is no universal value. 40–80 Shore A can be used as an initial development window for some applications, but the final hardness depends on the cap and bottle design.
Yes. Many TPE grades are designed for thermoplastic molding, allowing efficient production of customized sealing components.
Certain TPE formulations may be suitable, but pharmaceutical applications require application-specific qualification. USP <381> and <382> provide relevant frameworks for elastomeric packaging components. USP
Shandong Taierifeng New Material Co., Ltd. (TERRIFIC) develops and manufactures thermoplastic elastomer granules for customized applications.
For molded bottle cap liners, material development can be based on:
Cap drawing + bottle-neck dimensions + target hardness + sealing requirements + product contents + temperature conditions
This approach allows the TPE formulation and processing recommendations to be matched to the actual application rather than relying on a generic material grade.
